weave

Arguments:

• _density>=0,0<=_thickness<=100,0<=_shadow<=100,_shading>=0,_fibers_amplitude>=0,_fibers_smoothness>=0,_angle,-1<=_x_curvature<=1,-1<=_y_curvature<=1

Description:

Apply weave effect to the selected images.

angle can be { 0:0 deg. | 1:22.5 deg. | 2:45 deg. | 3:67.5 deg. }.

Default values:

density=6, thickness=65, shadow=40, shading=0.5, fibers_amplitude=0, _'fibers_smoothness=0', angle=0 and curvature_x=curvature_y=0

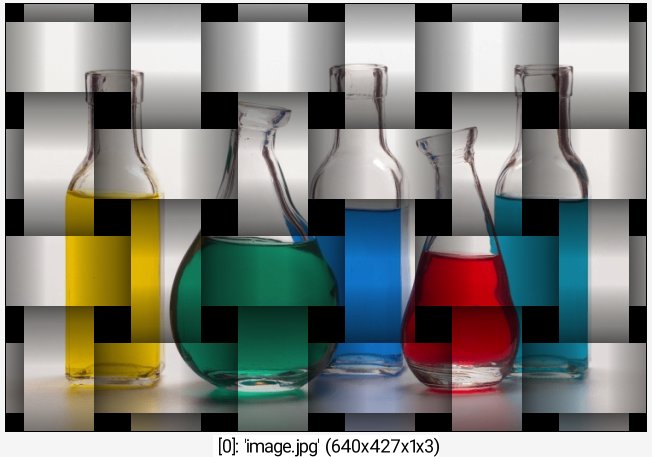

Example of use:

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> weave ,
