snapshot3d

Arguments:

_size>0,_zoom>=0,_backgroundR,_backgroundG,_backgroundB,_backgroundA,_fov_angle>=0 or
[background_image],zoom>=0,_fov_angle>=0

Description:

Take 2D snapshots of selected 3D objects.

Set zoom to 0 to disable object auto-scaling.

Default values:

size=1024, zoom=1, [background_image]=(default) and fov_angle=45.

Examples of use:

• Example #1

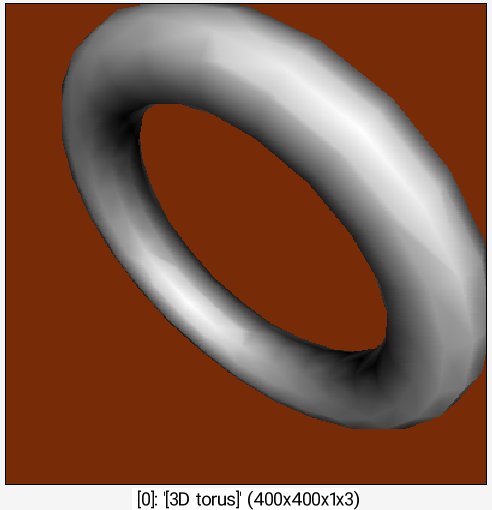

torus3d 100,20 rotate3d 1,1,0,60 snapshot3d 400,1.2,128,64,32

Command: torus3d 100,20 rotate3d 1,1,0,60 snapshot3d 400,1.2,128,64,32

• Example #2

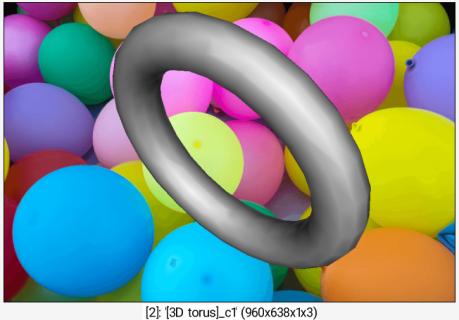

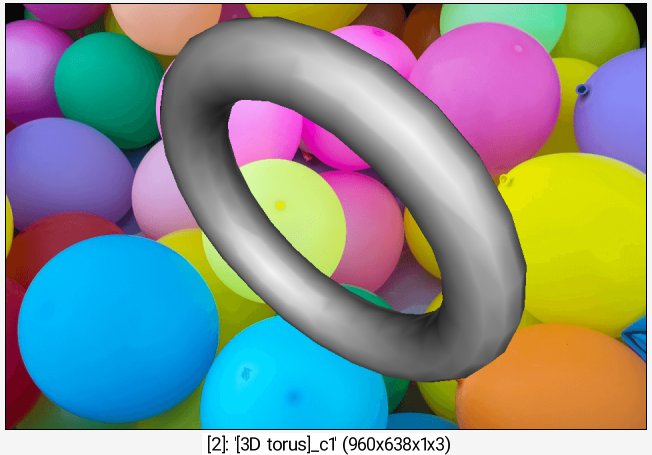

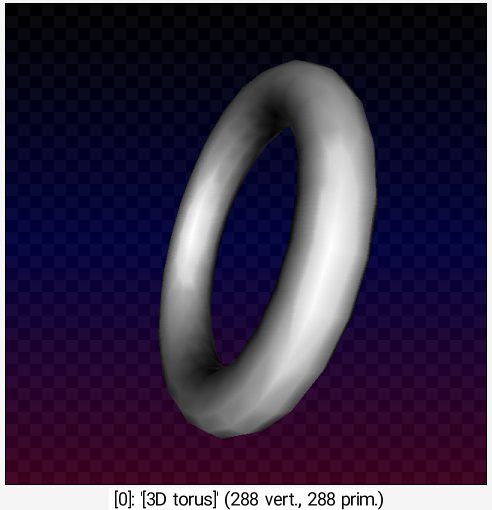

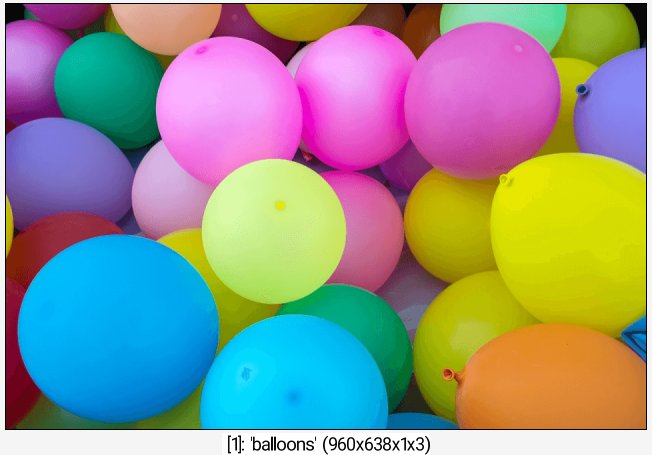

torus3d 100,20 rotate3d 1,1,0,60 sample ? +snapshot3d[0] [1],1.2

Command: torus3d 100,20 rotate3d 1,1,0,60 sample ? +snapshot3d[0] [1],1.2

Command: torus3d 100,20 rotate3d 1,1,0,60 sample ? +snapshot3d[0] [1],1.2

Command: torus3d 100,20 rotate3d 1,1,0,60 sample ? +snapshot3d[0] [1],1.2
