ilaplacian

Arguments:

{ nb_iterations>0 | 0 },_[initial_estimate]

Description:

Invert selected Laplacian images.

If given nb_iterations is 0, inversion is done in Fourier space (single iteration),
otherwise, by applying nb_iterations of a Laplacian-inversion PDE flow.
Note that the resulting inversions are just estimation of possible/approximated solutions.

Default values:

nb_iterations=0, axes=(undefined) and [initial_estimated]=(undefined).

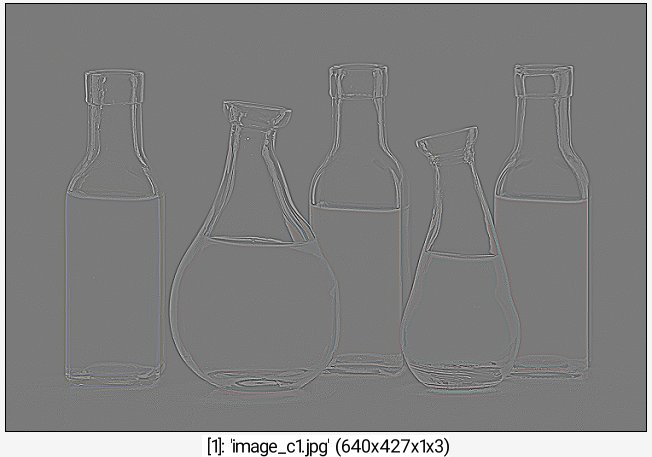

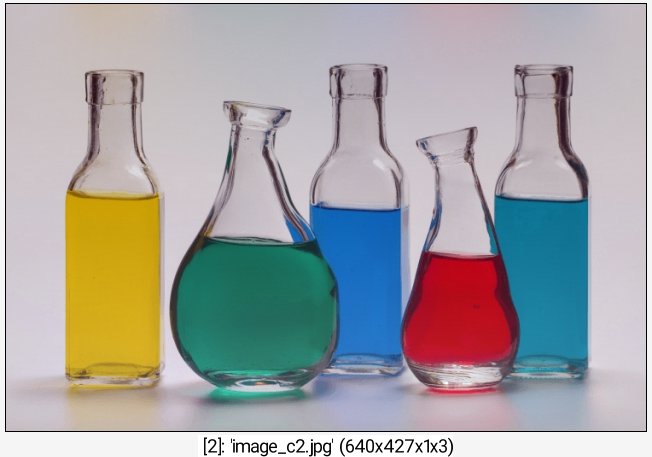

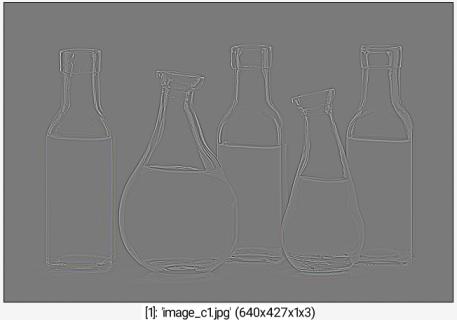

Example of use:

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +laplacian +ilaplacian[-1] 0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +laplacian +ilaplacian[-1] 0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +laplacian +ilaplacian[-1] 0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +laplacian +ilaplacian[-1] 0
