displacement

Built-in command

Arguments:

[reference],_smoothness>=0,_precision>=0,_nb_scales>=0,_iteration_max>=0,mode={ 0:Backward | 1:Forward },_[guide]

Description:

Estimate displacement field between specified reference image and selected (target) images.

If smoothness>=0, regularization type is set to isotropic, else to anisotropic.
If nbscales==0, the number of scales used is estimated from the image size.

Default values:

smoothness=0.1, precision=7, nb_scales=0, iteration_max=1000, mode=0 and [guide]=(unused).

Example of use:

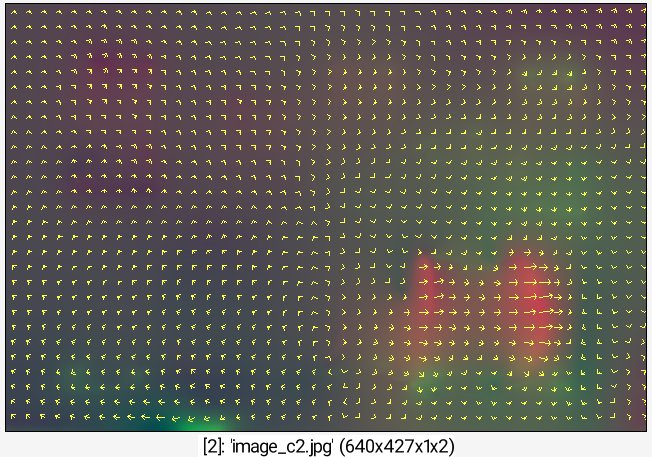

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rotate 3,1,0,50%,50% +displacement[-1] [-2] quiver[-1] [-1],15,1,1,1,{1.5*iM}

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rotate 3,1,0,50%,50% +displacement[-1] [-2] quiver[-1] [-1],15,1,1,1,{1.5*iM}

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rotate 3,1,0,50%,50% +displacement[-1] [-2] quiver[-1] [-1],15,1,1,1,{1.5*iM}

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rotate 3,1,0,50%,50% +displacement[-1] [-2] quiver[-1] [-1],15,1,1,1,{1.5*iM}
